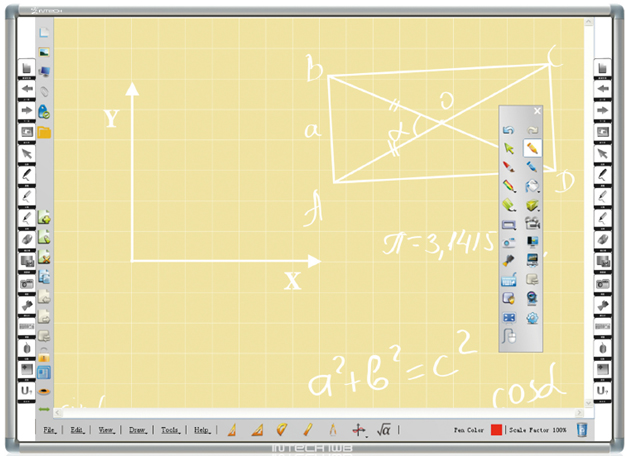

INTECH Infrared Interactive Whiteboard RD80A

INTECH Infrared Interactive Whiteboard RD80A

  • Plug-and-play for windows system with modular structure design, easy to assemble and maintain
  • Patented synchronizing multi-scanning technologies, true multi-point writing
  • 10 points touch (different users at the same time)
  • Improved algorithm and optimized structure with better performance
  • Patented self adaptive hardware and firmware technology, with excellent anti-light performance and excellent resistance to deformation of the board
Features Specifications Dimensions Video
  • Plug-and-play for windows system with modular structure design, easy to assemble and maintain
  • Wireless module optional
  • Patented synchronizing multi-scanning technologies, true multi-point writing
  • 10 points touch (different users at the same time)
  • Improved algorithm and optimized structure with better performance
  • Patented self adaptive hardware and firmware technology, with excellent anti-light performance and excellent resistance to deformation of the board
  • Serial bus connection technology, easy to assemble and maintain
  • Metal projection panel for front with ceramic cover, Galvanized metal panel for back
  • 16/20 hotkeys
  • Sensor TypeInfrared Technology
  • Calibration4 points
  • Resolution32768*32768
  • Power Consumption≤70mA
  • Cursor Speed300dot/s
  • Transmission Speed12m/s
  • Scanning SpeedFirst point: 16ms, continuous points: 8ms
  • Working Temperature-20℃ to +60℃
  • Working Humidity10% to 90%
  • Position Precision≤0.1mm
  • Surface MaterialMetal projection panel for front with ceramic cover , Galvanized metal panel for back
  • Data TransmissionUSB cable or wireless module
  • Power SupplyUSB power less than 5V/100mA
  • Operation SystemsWindows XP, Windows7, Windows8, MAC, Linux, Vista
  • Model

    Touch Size (inch)

    Touch Size (mm)

    Overall Size (mm)

    Aspect Ratio

  • RD80A801670*11751730*12594:3
