Home > Products > All in One Interactive Whiteboard System

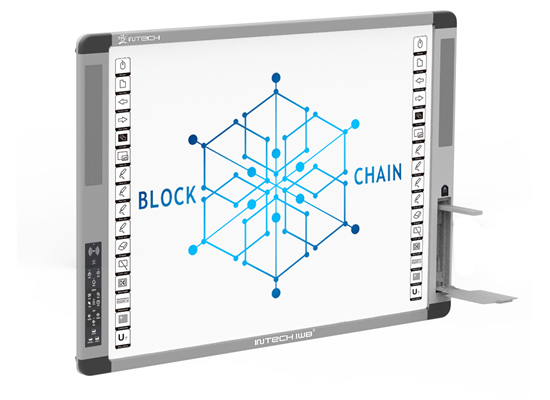

All in One Interactive Whiteboard System
Overview

INTECH Aio IWB system is having the inbuilt computer, interactive whiteboard, central control, speakers, wireless MIC, document camera and embedded interactive software. With the compatibility to be integrated with a wide range of hardware and interactive software, it reduces the total cost of purchasing an additional PC but delivers a more intelligent, intuitive, interactive experience in the classroom at all levels of education, in corporate meeting rooms, etc.


Features
  • Ensure seamless integration between central control, PC, document camera, high-power speakers, wireless MIC and IWB, and alleviate the need to assemble external cables
  • Support 4k HD video & IP radio with stunning quality image and clear voice to all the audience from every position in the room
  • IC card identification with fast authorization matching for security management on locking/unlocking central control panel and touch function
  • 10 touch points HID IWB, allowing multiple users to write and draw on the whiteboard simultaneously
  • One-button to power on/off, easier & faster operation to improve the efficiency of class
  • Aluminum frame, durable & beautiful, Polyvision e3 ceramic surface optional

Specifications

Power Supply

  AC 220V/50Hz/2A






IWB

  Touch Technology

  Infrared technology

  Touch Points

  10 points

  Calibration

  4 / 9 points or above

  Calibration Precision

  ≤0.1 mm

  Cursor Speed

  180 dot/s

  Transmission Speed

  12 m/s

  Resolution

  32768*32768

  Operation System

  Windows / Mac / Linux




Computer

  CPU

  Intel Core I3 / I5

  RAM

  4 GB

  HD

  128+500 G/1T

  Other

  Integrated graphics, sound card,     network card

Amplifier Speaker

  Power

  ≥2*15W




Wireless Microphone

  SD Card

  4 GB

  Power Supply

  Rechargeable lithium battery

  Using Time

  ≥8 hours

  Other

  Auto frequency modulation; enable   to expand voice module





Document Camera

  Pixel

  COMS camera, 5 million pixels

  Lens

  Auto focus




  Functions

  Support snapshot,  annotation,  record, take a picture,   insert IWB page, etc.;

Allow to set the brightness,   saturation and contrast ratio of   images;
  Enable to open images via other   tools or remove them





Central Control

  Inductive Area

  Tap IC card to login


  Touch Buttons

  Lock, power off, restart, signal,   power, energy, volume+/-, mute,  sleep mode

  Front Interfaces

  HDMI IN, USB2.0,  USB3.0


  Rear Interfaces

  USB2.0*2, Audio OUT 3.5mm*1,   MIC IN*1, RS-232*1, HDMI IN*1,   HDMI OUT*1, power adaptor port

Security Management

  Document camera safety door, IC card for login



Dimensions

Model

Overall Size (inch)

Overall Size (mm)

Touch Size (inch)

Touch Size (mm)

Aspect Ratio

AIO SR-8083

91.4

1930*1292*85

79.6

1645*1174

4:3

AIO SR-9093

102.5

2259*1292*85

90.4

1974*1174

16:10
