Home > Products > Capacitive Interactive Whiteboard - 10 Users (CP)
Capacitive Interactive Whiteboard - 10 Users (CP)

Technology Principle of Capacitive Interactive Whiteboard (10 Users Simultaneously)

  • Capacitive Technology which is similar to the latest IPhone/IPad technology for touch screen is now the most advanced technology in Interactive Whiteboard Industry. It is different from and superior to other traditional Interactive Whiteboard (Electromagnetic/Infrared/Optical) technologies and will become the future trend.
  • Data processing load is 100 times of infrared technology, which results in excellent multi-writing performance, supporting up to 10 different users writing simultaneously. The multi-touch technology results in more dynamic interactions around the contents.
  • The capacitive film inside the board identifies and locates static electrical capacity of the human body when a person touches the board. As it recognizes only finger touch or capacitive pen touch, any inaccurate touch or writing triggered by the objects on or close to the board can be eliminated.



Features
  • Plug-and-play for windows system
  • Support 10 points touch simultaneously, with no ghost points in multi-touch operation
  • Support up to 10 users writing simultaneously

  • Finger touch or capacitive pen touch
  • No touch height
  • Any objects on the board have no effect on the writing operation, which has largely reduced mistake-operation.
  • Immune to light or dust interference, suitable for various environments
  • Built-in stereo speakers to enrich excellent dual Audio-visual experience and save the trouble of installing extra speakers and cables
  • 8G storage space inside
  • Independent power supply
  • Two USB ports available for easy connection and use

Dimensions

Model

Size

Aspect Ratio

Overall Dimension (mm)

Effective Writing Area(mm)

CP-8088(with speaker)

81"

4:3

1796*1338

1686*1196

CP-8088(without speaker)

81"

4:3

1796*1310

1686*1196

CP-9299(with speaker)

92"

16:10

2116*1338

2006*1196

CP-9299(without speaker)

92"

16:10

2116*1310

2006*1196


Specifications

  Sensor Type

  Capacitive Technology

  Touch Points

  10 Points

  Calibration

  4 Points

  Resolution

  32768*32768

  Sampling Rate

  100 PT/S

  Postioning Accuracy

 ≤1 mm

  Tracking Speed

  10 m/s

  Working Temperature

  -20℃ to +65℃

  Working Humidity

  10% to 90%

  Speaker

  2*10 W (optional)

  USB Port

  2 x USB2.0 hub ports (optional)

  Operation Systems

  Windows XP, Windows 7, Windows 8, Windows 10, Vista, Linux, Mac

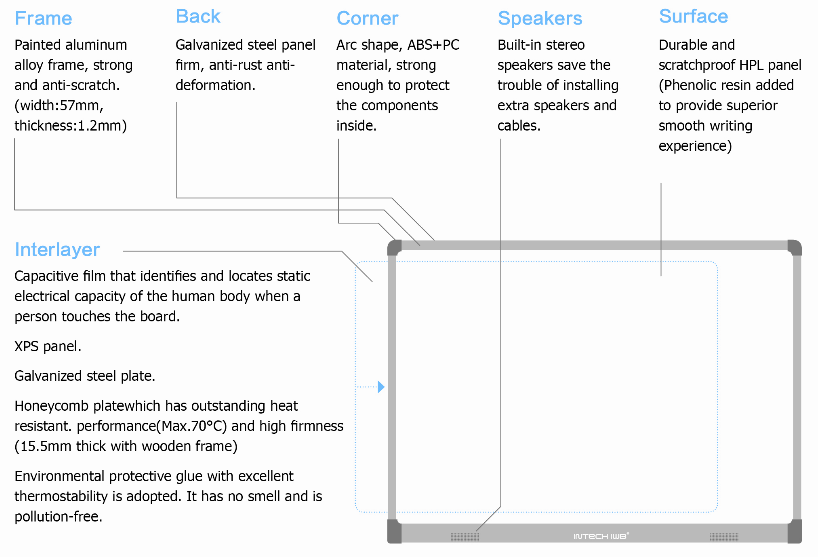

Structure
