Multimedia All-In-One PC

Multimedia All-In-One PC

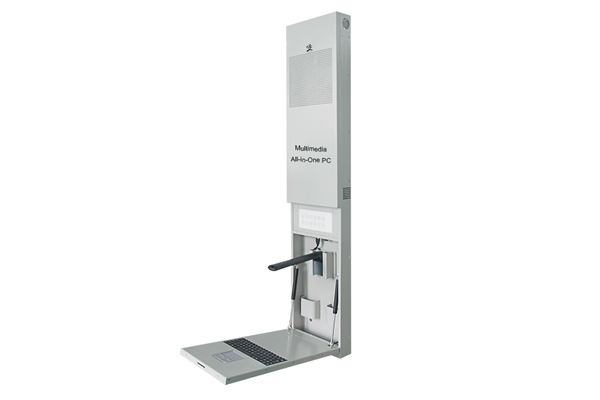

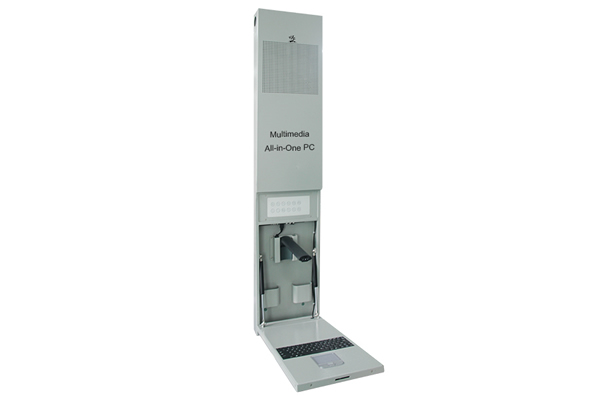

This multimedia All-in-One PC is a combination of a computer, a central controller, a digital visualizer, keyboard, touch pad and speaker. Wall-mounted beside the interactive whiteboard, it allows the instructors to easily control the speaker, computer projector, visualizer by pressing the keys on the central controller panel. There are two colors for options, black and white.
Features Specifications Dimensions Video

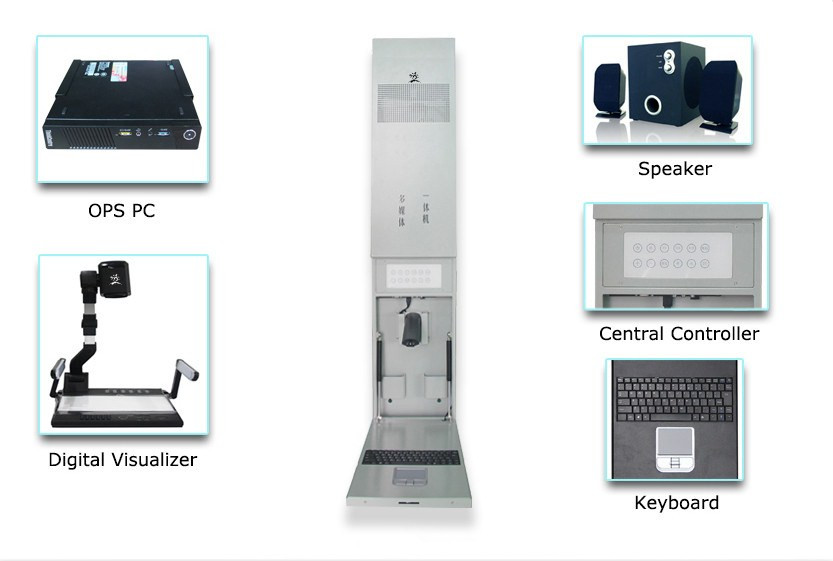

Innovative and Highly Integrated All-in-One PC

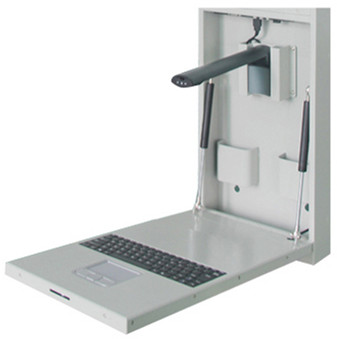

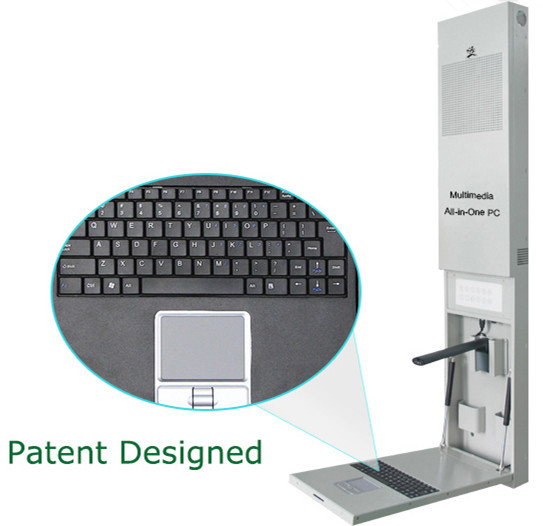

key board & touch pad Patent Built-in Keyboard and Touch Pad
  • Built-in keyboard and touch pad
  • Used as a visualizer platform in size of 250*580mm
  • Can be folded up

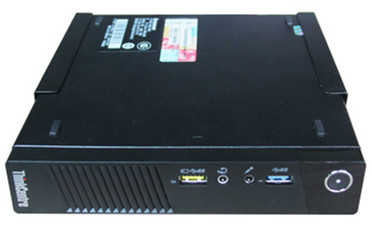

OPS PC Built-in OPS Mini PC
  • PC: OPS mini PC, Intel I3 CPU (I5/I7 is optional)
  • RAM: 2G (4G is for option)
  • Hard Disk: 500G (1T is optional)
  • Integrated high-performance sound card, video card and gigabit ethernet

top interfaces Top Interfaces
  • Output*1, Input*1, R-Audio*1, L-Audio*1, VGA*1, USB*4, RS232*1, HDMI*1, IR*1, J45*1

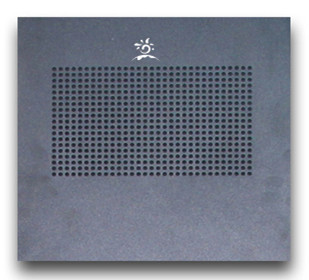

speaker Custom-made Hi-fi Speaker for Classroom
  • Power: 2*20W
  • Resistance: 4Ω
  • Sensitivity 85DB
  • Frequency response: 100HZ-18KHZ

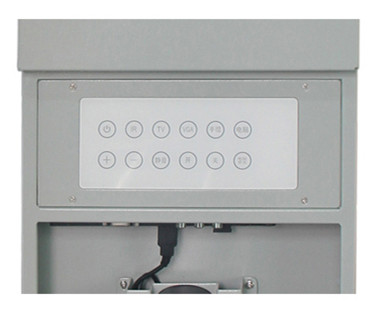

central controller Central Controller
  • Touchable Panel;
  • Easy to control PC, projector and whiteboard;
  • One key to power on/off all devices;
  • Projector power-off delay protection;
  • Multifunctional keys: USB*4, VGA, HDMI, Power on/off, MIC, PC on/off, Projector on/off, Mute, Volume+/-, IR

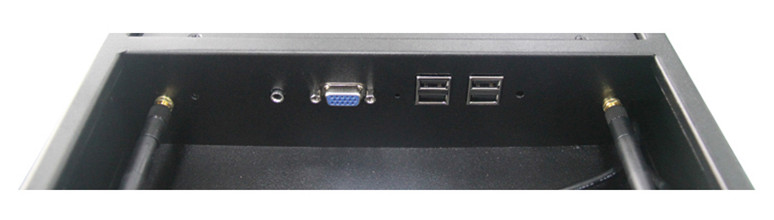

interfaces of central controller Interfaces of Central Controller
  • VGA*1, USB*4, 3.5mm Jack*1, Wireless Microphone Antenna*1, WIFI Antenna*1

digital visualizer User-friendly Digital Visualizer
  • Resolution: 2592*1944 (5.0M Pixels)
  • Scan Size: A4
  • Color: 24bit
  • Scan Speed: 1 second
  • Scan Object: File, document, books, text, real object, face, etc
  • Light Resource: High brightness LED, natural light
  • Photo Format: JPEG, TIF, PDF, etc
  • Video Format: AVI, MPEG4, H.264, FLV

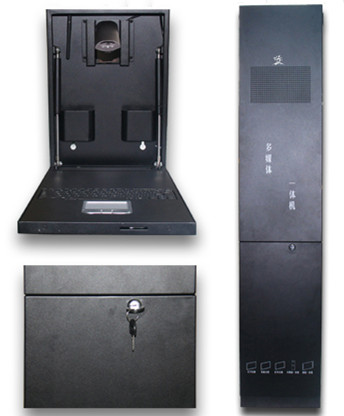

security management Security Management
  • Fully close locked, easy to keep;
  • Comes with keys and a lock to avoid the control panel, visualizer, keyboard to be operated by naughty students.



  • Cabinet

  • Dimension1280*260*80 mm
  • ColorBlack, white
  • Lock SystemMechanical and smart lock for options
  • Top InterfaceLan port, VGA out, power in/out, RS232, IR, USB port, Audio out, Video out, etc
  • WeightN.G 15.5kg; G.W.17kg
  • PC

  • Structure FeaturesSlim and compact design, the top panel is fully closed, with side cable holes, dust-proof
  • CPUOPS I3 PC(I5/I7 for options)
  • StorageRAM: 2GB/4GB, HDD: 500GB/1000GB for options
  • IntegrateIntegrated graphics Intel HD Graphic 2500, Support 1920*1200, High performance sound card
  • UpgradeDirect upgrade CPU to I5, I7 series, no need to replace the motherboard
  • Central Controller

  • Control PanelTouchable panel
  • One-key switch on/off the systemSupport
  • Projector power-off delay deviceIncluded
  • Projector anti-theft alarmSupport
  • I/O Interface

  • Video1way output, 1 way input
  • Audio4 way input, 1way output
  • VGA3 way input, 2 way output
  • USB4 way
  • 232 Port1 way
  • Power Output2 way
  • IR Port1 way independent programmable infrared interface
  • Microphone2 way (1 way wired microphone, 1 way 2.4G wireless microphone)
  • Lan Port1 way
  • HDMIavailable for options
  • Digital Visualizer

  • Resolution5.0M pixels
  • Scan SizeA4
  • Color24bit
  • Scan Speed1 second
  • Scan ObjectFile, document, books, text, real object, face, etc
  • Light ResourceHigh brightness LED, natural light
  • Photo FormatJPEG, TIF, PDF, etc
  • Video FormatAVI, MPEG4, H.264, FLV
  • Image EffectsBrightness & exposure & color & gain & image color adjustment, sharpness, delete the black edges, image shearing
  • Keyboard

  • Built-in, laptop type (with patent)

  • Speaker

  • 20W (10W*2), Resistance 4Ω, Sensitivity 85DB, Frequency Response: 100HZ-18KHZ

  • AmplifierSensitivity: 450mV
  • Frequency Response20HZ-20KHZ
  • Model

    Dimension (mm)

    Packing Size (mm)

    N.W.(kg)

    G.W.(kg)

  • Multimedia All-in-One PC INFC-40001280*260*801410*290*12015.517
