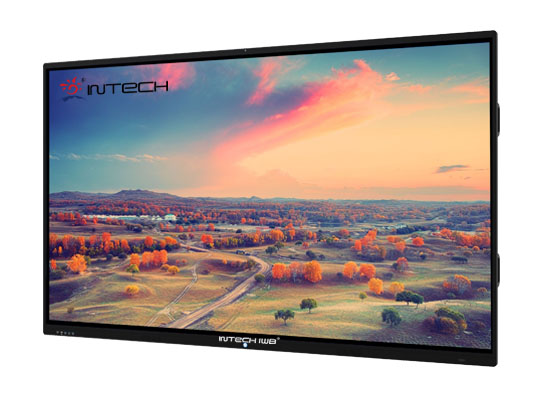

INTECH Interactive Flat Panel TS-LD Series

  • 20 points touch and 4K UHD display
  • full-featured detachable OPS module
  • built-in Android8.0 system
  • annotation capability for all input source
  • versatile, rich connectivity for multi-devices
  • Wireless screen casting and QR code scanning
Features Specifications Dimensions Video
  • 20-point touch and 4K UHD display
  • detachable OPS module for seamless integration into display
  • built-in Android 8.0 OS to download all your favorite Apps
  • annotation capability for all input source
  • professional display with versatile, rich connectivity options to transmit HD content efficiently
  • wireless screen casting with two-way control of the small and big screen
  • a breeze with content share via QR code

  • Model

    TS65LD

    TS75LD

    TS86LD

    TS98LD

  • Display

  • Size

    65"75"86"98"

  • Backlight Type

    D-LED

  • Aspect Ratio

    16:9

  • Display Area (mm)

    1428.5 (H) * 803.5 (V)1649.8 (H) * 928 (V)1896 (H) * 1066.9 (V)2159 (H) * 1214 (V)

  • Resolution

    3840 (H) * 2160 (V) (UHD)

  • Colors

    8bit, 1.07B

  • Brightness

    450cd/m²

  • Contrast Ratio

    4000:1 (Typ.)1200:1 (Typ.)1200:1 (Typ.)1200:1 (Typ.)

  • View Angle

    178°(H) / 178°(V)

  • Screen Lifespan

    ＞35,000hrs

  • Technical Spec.

  • Overall Size (mm) (include OPS)

    1485.74 (L) * 90.5 (W) * 909.9 (H)1707.9 (L) * 97.7 (W) * 1035.1 (H)1954.1 (L) * 90.7 (W) * 1173.7 (H)2225 (L) * 99.9 (W) * 1330.9 (H)

  • Packing Size (mm)

    1640 (L) * 215 (W) * 1058 (H)1865 (L) * 220 (W) * 1195 (H)2115 (L) * 240 (W) * 1332 (H)2410 (L) * 350 (W) * 1660 (H)

  • G.W/N.W

    49/39 KG68/56 KG83/64 KG143/98 KG

  • Power (not include OPS)

    ≤210W≤300W≤380W≤400W

  • Standby Power

    ≤0.5W

  • Input Voltage

    100~240V 50/60Hz

  • Material

    Aluminium alloy frame

  • Screen

    7-level explosion-proof, anti-glare tempered glass

  • Speakers

    stereo, 2*15W

  • Touch

  • Touch Points

    20 points touch

  • Touch Method

    finger, stylus pen, or >2.5mm non-transparent objects

  • Resolution

    32767*32767

  • Accuracy

    ±1mm

  • Response Speed

    <8ms

  • Operating System

    Windows7/10, Android, Mac OS

  • OS

  • Chip

    Hi3751 V811

  • CPU

    Dual-core A73 and dual-core A53, 1.5GHz

  • GPU

    Quad-core MaliG51

  • RAM

    4G

  • ROM

    32G

  • Android Version

    Android 8.0

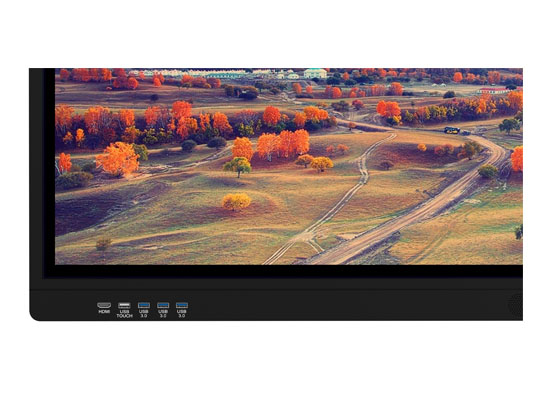

  • I/O Ports

  • Input Port

    VGA IN*1, VGA Audio*1, AV IN*1, HDMI IN*2, Ypbpr IN*1, MIC IN*1

  • Output Port

    Earphone*1, SPDIF*1, HDMI OUT*1

  • Other

    RJ45/LAN IN*1, RJ45/LAN OUT*1, Touch USB*3, Type-c*1, RS232*1, USB2.0*1, USB3.0*1

  • Optional

  • camera, 8-MIC array
