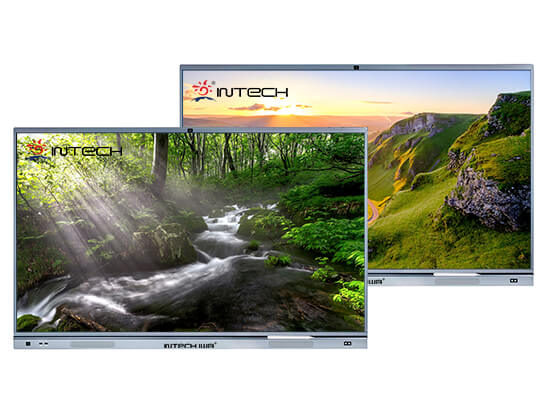

INTECH Interactive Monitor Display

  • Wall mountable, "ALL in ONE" Intel Core-i5 computer built with 65"-75”-86” monitor display screen for small to medium class rooms.
  • Elegantly designed with some innovative features include 20-point multi-touch, 4K resolution. These features allow the "ALL in ONE" computer, to facilitate intuitive collaboration between teacher and students, while enhancing interactivity.
Features Specifications Dimensions Video
  • 20-point multi-touch interactivity
  • Multi-platform compatibility
  • All in One system for an easy and fun annotation solution
  • Instant plug and play facility
  • Eye-care solution for healthy and effective learning environment
  • Flicker-free technology
  • Best visual quality and classroom-ready size displays for teaching
  • Mainstream interactive educational software solution

  • Model

    TC-1650

    TC-1750

    TC-1860

  • Display Spec.

  • Display Size

    65"75"86"

  • Recommended Class Room Area

    20-30 m235-50m250m2 above

  • Contrast Ratio

    5000:1

  • Resolution

    3840*2160 (RGB)

  • Viewing Angle

    178°

  • Backlight Type

    DLED

  • Screen Lifespan

    ≥50000h

  • Technical Spec.

  • Packing Size (mm)

    1600*1025*2151870*1150*2202110*1315*240

  • Glass Type

    4mm anti-explosion tempered glass

  • Frame Size

    27.7mm

  • Appearance

    aluminium alloy frame, front USB port, power button and speaker

  • Touch Spec.

  • Touch Technology

    infrared technology

  • Input Method

    finger, stylus pen

  • Response Time

    ≤6ms≤5ms≤6ms

  • Calibration Accuracy

    2mm

  • Connection Port

    USB2.0

  • Touch Points

    20 point touch

  • Touch Times

    unlimited

  • Driver

    driver free

  • Operating System

    Android 8.0

  • Memory

    2G DDR4

  • Storage

    16 GB Standard

  • Interface

  • LAN*2, VGA IN*1, PC-AUDIO IN*1, YPBPR*1, AV IN*1, AV OUT*1, Earphone OUT*1, RF-IN*1, SPDIF*1, HDMI IN*2, Touch*1, RS-232*1, USB2.0*4 (front*2)

  • Power Spec.

  • Voltage

    100V-240VAC,50/60Hz

  • Overall Power (not include ops)

    ≦220W≦300W≦350W

  • Environment Spec.

  • Working Temperature

    0℃~+40℃

  • Working Humidity

    10%～60%

  • Features

  • Touch panel

    Support 20 points touch simultaneously, smooth writing experience

  • Gesture menu

    After turn on the touch panel, you can use gesture to slide the navigation menu on the side of the screen.

  • Channel signal auto recognization

    When the external HDMI or USB port input signal, the system will auto skip to the corresponding port and display the signal; when unplug the external port signal, the system will skip to the built-in HD channel.

  • Floating menu

    Three finger touch for following, five finger touch for sleep
