INTECH Interactive Panels TS-GR Series

  • 4K UHD resolution
  • superior touch experience
  • embedded Android9.0 OS
  • wireless cast and control
  • rich connectivity for easy access
  • built-in 2x15W speakers
Features Specifications Dimensions Video
  • embedded Android 9.0 operating system with quick and easy access to a wide selection of apps
  • ambient light sensor automatically adjust the brightness of the screen based on environmental light conditions to protect eyes
  • smart identify signal source, auto enter the corresponding channel after receiving an external signal

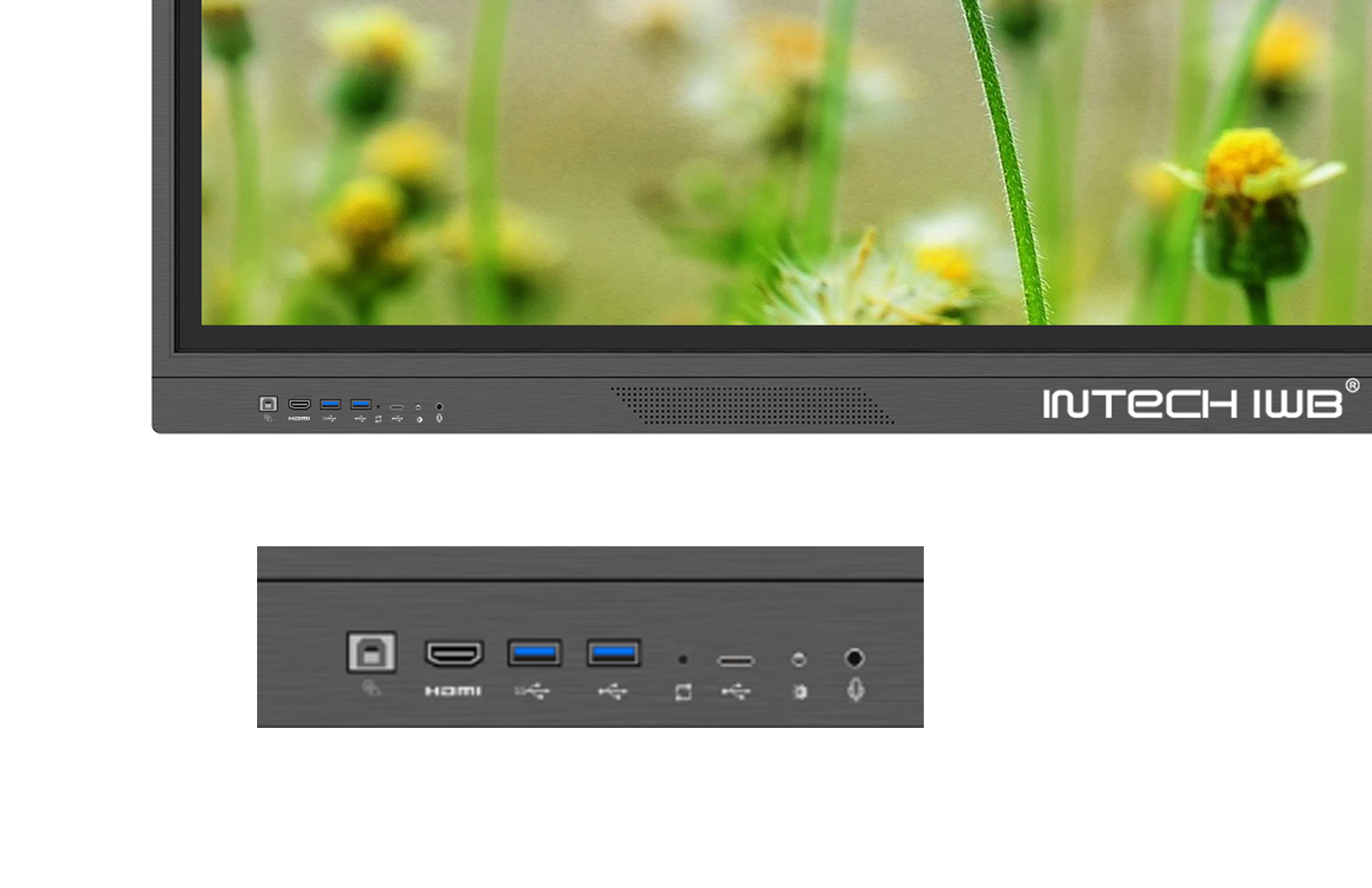

  • superior connectivity with front-facing ports include HDMI, Type C, USB 3.0 and touch USB, etc
  • wireless casting and controlling on the display screen and mobile devices let teachers move freely in the classroom to interact with students
  • built-in front 2x15W stereo hybrid dual channel speakers offering excellent surround sound experience

  • Model

    TS65GR

    TS75GR

    TS85GR

    TS86GR

  • Technical

  • Overall Size (mm)

    1498(L) x 918(H) x 96(W)1723(L) x 1044(H) x 99(W)1965(L) x 1180(H) x 99(W)1965(L) x 1180(H) x 99(W)

  • Packing Size (mm)

    1660(L) x 1065(H) x 225(W)1875(L) x 1185(H) x 225(W)2115(L) x 1325(H) x 225(W)2115(L) x 1325(H) x 225(W)

  • N.W

    45 KG58.5 KG77 KG77 KG

  • G.W

    59 KG73.5 KG95 KG95 KG

  • VESA Wall Mount

    400 (H) x 300 (V)600 (H) x 500 (V)600 (H) x 600 (V)600 (H) x 600 (V)

  • Wall-Mount Screws

    M8 x L25 x 4 pcs

  • Display

  • Panel Size (diagonal)

    65"75"85"86"

  • Display Area (mm)

    1428 x 8041650 x 9291872 x 10531895 x 1066

  • Aspect Ratio

    16:9

  • Backlight

    DLED

  • Resolution

    4K (3840 x 2160)

  • Peak Brightness

    350cd/㎡±30

  • Contrast Ratio

    5000 : 1

  • View Angle

    178°(H) / 178°(V)

  • Display Color

    10Bit, 16.7M

  • Surface

    4mm anti-explosion or anti-glare tempered glass

  • Speakers

    15W*2

  • Operating System

  • Chipset

    V560

  • Android Version

    Android 9.0

  • CPU

    ARM A53 Quad-core, 1.5GHZ

  • Storage

    RAM: 2 GB DDR4 + ROM: 16 GB / RAM: 3 GB DDR4 + ROM: 32 GB

  • Touch Technology

    infrared technology

  • I/O Ports

  • Input Port

    USB2.0*2, PC-VGA*1, RJ45*1, VGA*1, HDMI*2, MIC*1 (front as optional), external Wi-Fi antenna*4 (5G hotspot*2)

  • Output Port

    USB*1, coaxial (RCA)*1, earphone/line out*1, RS232*1, Bluetooth*1

  • Front Port

    USB2.0*2 IN (Type-C*1), USB3.0 IN*1, HDMI IN *1, USB OUT *1

  • Power

  • Power Requirement

    AC 180-240V 50/60Hz

  • Power Consumption (display only)

    240W320W350W350W

  • OPS

  • Input Voltage

    17-21V DC

  • Rated Output Current

    1.0A - 7.0A

  • Peak Output Current

    *8.0A

  • Rated Load Power

    135W

  • Interface

    Conform to Intel® OPS-C JAE 80-pin connector

  • OPS Size

    L196*W180*H33~42mm (recommended height: 33mm)

  • Image Resolution

    Support up to 3840*2160p@30Hz for output

  • Camera (optional)

  • embedded camera module with 8 HD MIC array
