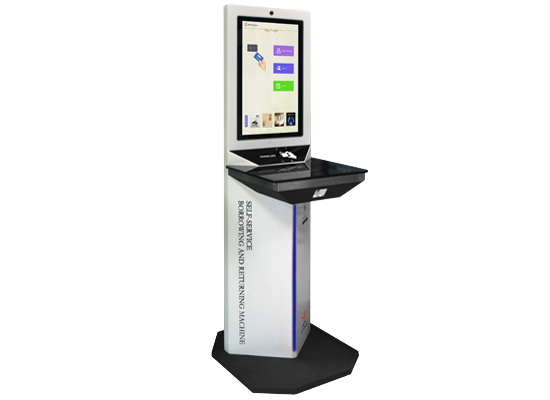

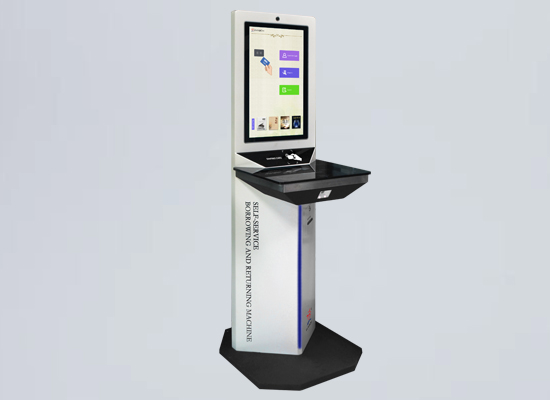

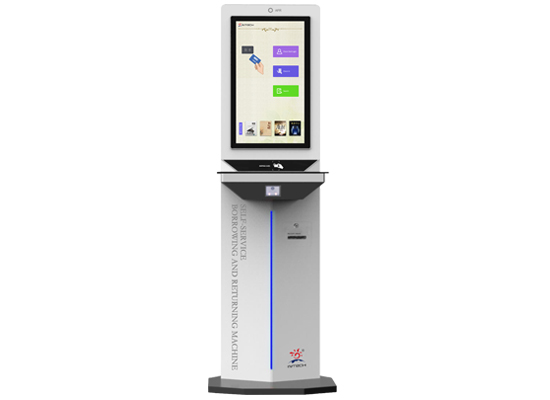

Intech Self Service Kiosk
Your are here: Home > Solutions >Smart Library

Intech Self Service Kiosk

  • User Identification:Barcode, RFID, IC, Mifare card, facial recognition, PIN entry
  • Reliable Checkout:Check out up to 10 items with 2cm thickness at a time
  • Various Patron Functions:Check in, check out, search, renewal, view account, print receipts, etc.
Features Specifications Dimensions Video
  • User Identification:Barcode, RFID, IC, Mifare card, facial recognition, PIN entry
  • Reliable Checkout:Check out up to 10 items with 2cm thickness at a time
  • Various Patron Functions:Check in, check out, search, renewal, view account, print receipts, etc.
  • Model ST02-05B
  • Dimensions 500*570*1485mm (L*W*H)
  • Screen 21.5” capacitive touch screen, multi-point touch
  • Screen Resolution 1920*1080
  • Screen Aspect Ratio 16:9
  • Screen Contrast 3000:1
  • CPU RK 3288; Octa-core, 1.6GHz
  • Operation System Android 5.1 above
  • RAM 2G
  • Memory 8G
  • Audio Output stereo L/R, 10W*2, 8Ω
  • Port LAN*1, RJ45*1, WiFi 2.4G*1, USB*3, TF card*1, HDMI OUT*1
  • Materials Sheet metal, reinforced glass
  • Card Reader RF wireless module, compatible with ISO14443A (Mifare S50 card), ISO15693, ID card (EM4100 card), ISO14443B protocol
  • Reader adopt anti-collision algorithm
  • Read Speed 50 pcs/sec.
  • Read Range 16-40cm
