Optical Interactive Whiteboard - 10 Users (DV)

Optical Interactive Whiteboard - 10 Users (DV)

INTECH optical interactive whiteboard (DV series) is of image sensing technology with finger touch functions. Four image sensors using lens of 1280*768 pixels are perfectly located in corners of aluminum frame. They capture touch on the board’s surface at a sampling rate of 180 points/second and transmit the touching point’s coordinate (x, y) to the high-capacity main board speedily. Once a computer is connected to the board, users can have full control of the PC and applications by finger touch on it.

Features Specifications Dimensions Video
  • Plug-and-play for windows system
  • True HID device without driver
  • Wireless module optional
  • Multi touch gestures supported
  • Digital vision touch technology, multi writing
  • Finger touch or any opaque object writing
  • Four-point calibration
  • Precise positioning and instant response without writing delay
  • Super sensitive lens of 1280*768 pixels developed by INTECH
  • High resolution rate 32768*32768
  • Fast sampling rate 180 points/second
  • Plug-and-play USB connection--no need for external power supply
  • A budget favorable for large size interactive whiteboard
  • Stable performance and smooth writing experience

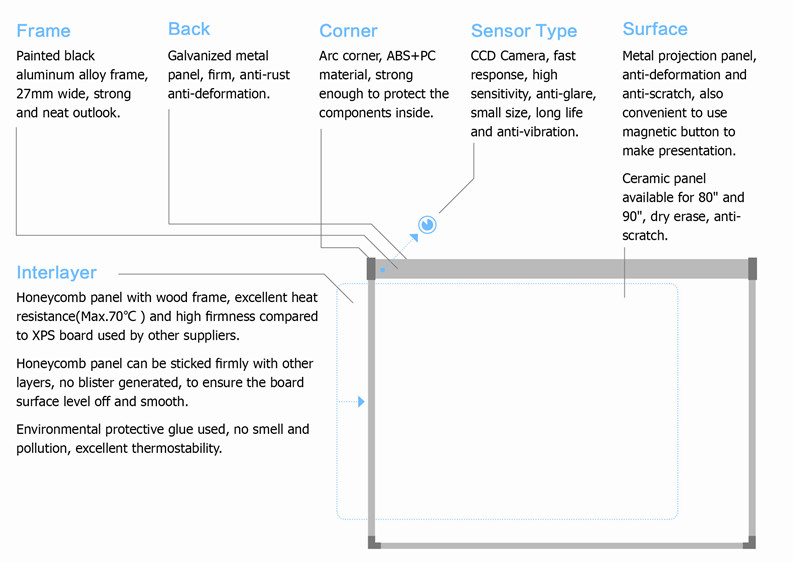

structure of INTECH optical interactive whiteboard
  • Sensor TypeDigital vision touch technology
  • Calibration4 points
  • Resolution32768*32768
  • Scanning SpeedFirst point 25ms, continuous points: 8ms
  • Working Temperature -20℃ to +60℃
  • Working Humidity10% to 90%
  • Data TransmissionUSB cable or wireless module
  • Power SupplyUSB power less than 5V/100mA
  • Operation SystemsWindows XP, Windows Vista, Windows 7, Windows 8, Mac, Linux
  • Model

    Overall Size (inch)

    Overall Size (mm)

    Touch Size (inch)

    Touch Size (mm)

    Aspect Ratio

  • DV-8086861740*1304801680*11774:3
  • DV-8286861755*1255821695*12004:3
  • DV-8387871860*1190831800*106316:10
  • DV-9095M952037*1304901977*117716:10
