Home > Products > Infrared Interactive Whiteboard (SR) > Infrared Interactive Whiteboard - 10 Users (SR)

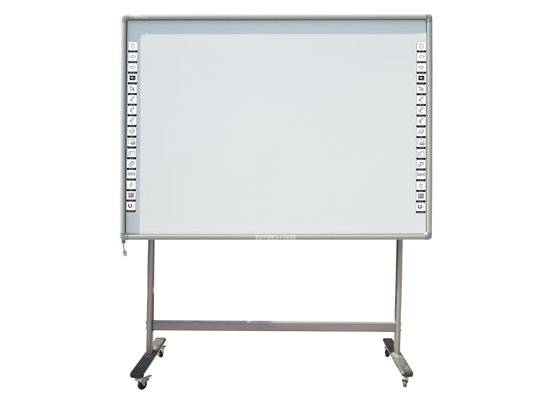

Infrared Interactive Whiteboard - 10 Users (SR)
Technology Principle of Infrared Interactive Whiteboard
  • Use infrared technology
       It supports more than 5 points multitouch and is different from RE and TRE series, with no light interference.
  • Patented self-adaptive infrared technolog
      Infrared Interactive Whiteboard requires high flatness of the board, because infrared ray is transmitting in straight lines. Even a little deformation can make the transmitting fail. Especially after long distance delivery, the board’s flatness would be affected. That’s why sometimes it won’t work well after long distance delivery. Our patented self adaptive technology has fixed this problem. We add an algorithm which can self adjust the transmitting frequency by calculating the unflatness of the board. So our Interactive Whiteboard can still work perfectly after long distance shipping.
  • Anti-light interference technology
      When the sunlight is strong and straightly projected on the Interactive Whiteboard, the infrared ray in the sunlight might interfere with the regular work of Interactive Whiteboard. We add an algorithm to recognize and exclude the interference by the infrared ray in the sunlight, which ensures our infrared Interactive Whiteboard can still work perfectly even under strong sunlight.
  • Matrix Scanning + Fan-shaped scanning type

Interactive Whiteboard Provider from China INTECH, with sincerely hope every customer to visit our factory.



Features
  • Plug-and-play for windows system Modular structure design, easy to assemble and maintain
  • Wireless module optional
  • Patented synchronizing multi-scanning technologies, true multi-point writing
  • 10 Points Touch (different users at the same time)
  • Improved algorithm and optimized structure with better performance

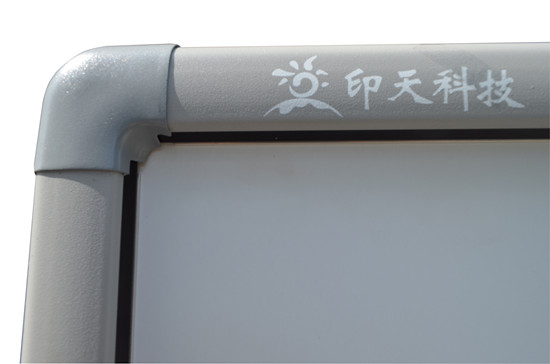

  • Eye-catching design with qualified aluminum alloy frame
  • Patented self adaptive hardware and firmware technology, with excellent anti-light performance and excellent resistance to deformation of the board
  • Serial bus connection technology, easy to assemble and maintain


Dimensions

Model

Size

Effective Writing Area(CM)

Overall Dime. (CM)

Outer Packing Dime. (CM)

CBM

N.W.(KG)

G.W.(KG)

SR-8083

80”

156.5*117.4

173*125.9*4

177.5*132.4*8.5

0.20

18.35

28

SR-8285

85”

160.6*120.5

179.2*129*4

183.7*132.4*8.5

0.22

21.8

31

SR-9093

90”

187.8*117.4

205.9*125.9*4

210.4*132.4*8.5

0.24

23

33

SR-100105

100”

208.8*131.7

227.9*140.7

227.5*140.2*4.2

0.28

24

35


Specifications

  Sensor Type

  Infrared Technology

  Calibration

  4 Points

  Resolution

  32768*32768

  Power Consumption

  <=70mA

  Cursor Speed

  180dot/s

  Transmission Speed

  12m/s

  Scanning Speed

  First point:16ms,continuous points:8ms

  Working Temperature

  -20℃ to +60℃

  Working Humidity

  10% to 90%

  Position Precision

  <=0.1mm

  Surface Material

  Metal projection panel for front, Galvanized metal panel for back

  Date Transmission

  USB Cable or Wireless Module

  Power Supply

  USB power less than 5V/100mA

  Operation Systems

  Windows XP, Windows7, Windows8, MAC, Linux, Vista



Structure
infrared interactive whtieboard fitting -sr
